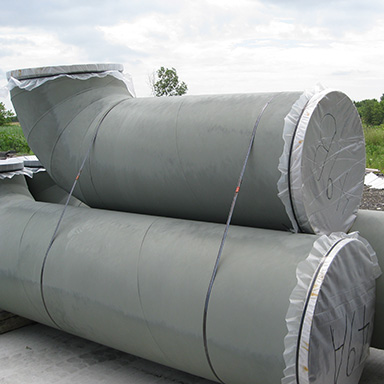

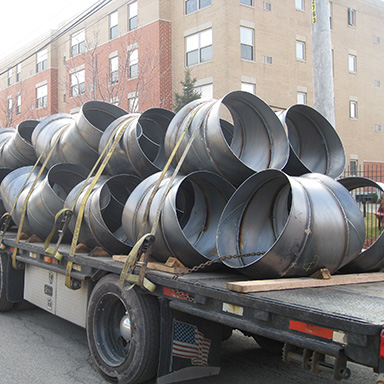

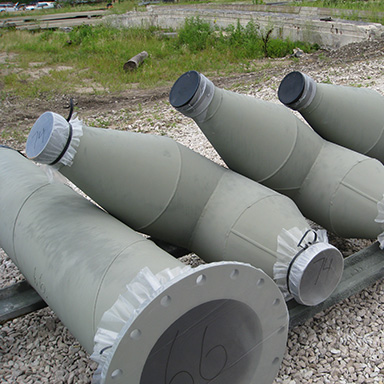

Standard Naylor fittings are available in carbon steel, alloys and stainless steel in wall thicknesses to exactly match Naylor pipe sizes. Extra heavy, special radius or combination of fabricated fittings are available.

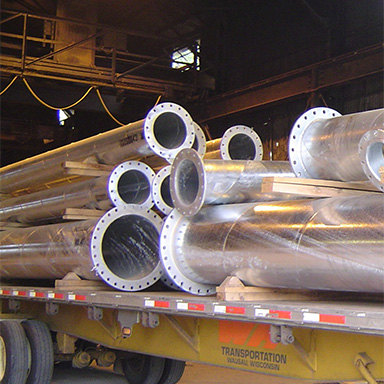

The plain ends can be prepared to accommodate all standard type end connections to include: (1) slip-on welding flanges; (2) welding rings, collars, slip joints or heavy beveled ends; *(3) standard weight ends grooved for Naylor Wedgelock couplings or other positive type couplings; *(4) standard weight ends smooth for mechanical couplings.

The tables show dimensional specifications for standard Naylor fittings used with pipe having plain or flanged ends.

*Note: If heavy reinforced grooved ends are attached, add the length of the end to the standard dimension shown.



figure-1

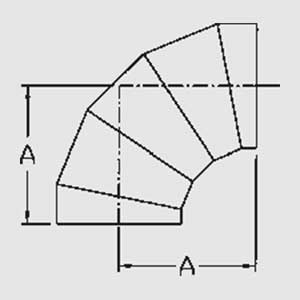

61°-90°ELL
(Standard Radius)
Figure 1
figure-2
61°-90°ELL

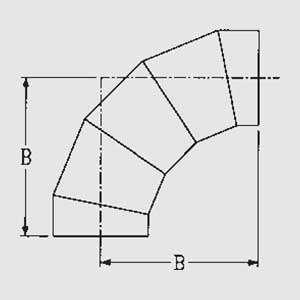

(Long Radius)
Figure 2
figure-3

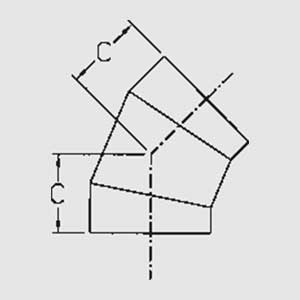

31°-60°ELL
Figure 3
figure-4

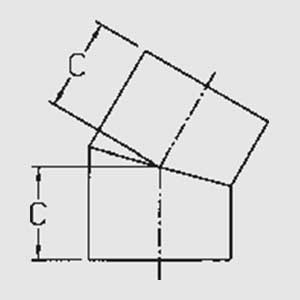

0°-30°ELL
Figure 4
figure-5

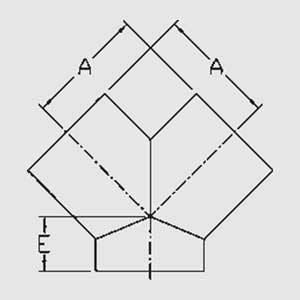

TRUE WYE
Figure 5
figure-6

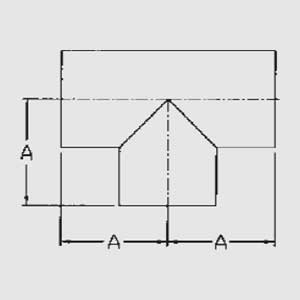

TEE
Figure 6
figure-7

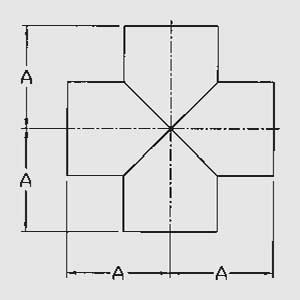

CROSS
Figure 7
figure-8

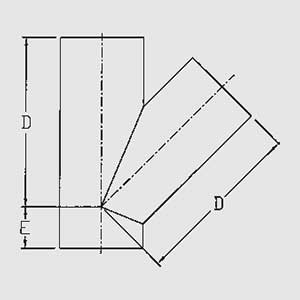

LATERAL
Figure 8
figure-9

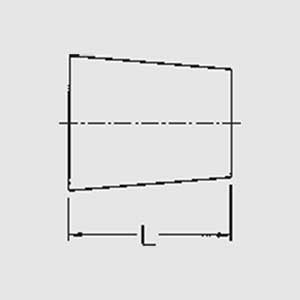

REDUCER
Figure 9

NAYLOR STANDARD DIMENSIONS

Size in Inches 3 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 48 54 60 66 72
“A” 5½ 6½ 7½ 8 9 11 12 14 15 16½ 18 20 22 23 24 25 26 27 28 29 30 31 34 39 44 48 53
“B” 7¾ 9 10¼ 11½ 14 16½ 19 21½ 24 26½ 29 31½ 34 36½ 39 41½ 44 46½ 49 51½ 54 56½ 64 71½ 79 86½ 94
“C” 3 4 4½ 5 5½ 6½ 7½ 7½ 8 8½ 9½ 10 11 13 14 15 16 17 18 19 20 21 24 27 30 33 36
“D” 10 12 13½ 14½ 17½ 20½ 24½ 27 30 32 35 37½ 40½ 44 46½ 49 52 56 60 63 66 69 75 80 88 95 104
“E” 3 3 3½ 3½ 4½ 5 5½ 6 6½ 7 8 8½ 9 9 9½ 10 14 19 24 24¾ 25½ 26 26 26 26 28 28
“L” 6 7 8 9 11 12 14 16 18 19 20 22 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24



WELDING FITTING STANDARD DIMENSIONS

Size in Inches 3 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 48 54 60 66 72
“A” 3 4 5 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 48 54 60 66 72
“B” 4½ 6 7½ 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60 63 72 81 90 99 108
“C” 2 2½ 3 3¾ 5 6¼ 7½ 8¾ 10 11¼ 12½ 13½ 15 16 17¼ 18½ 20 21 22¼ 23½ 25 26 30 33½ 37 41 45
“D” 10 12 13½ 14½ 17½ 20½ 24½ 27 30 32 35 37½ 40½ 44 46½ 49 52 56 60 63 66 69 75 80 88 95 104
“E” 3 3 3½ 3½ 4½ 5 5½ 6 6½ 7 8 8½ 9 9 9½ 10 14 19 24 24¾ 25½ 26 26 26 26 28 28
“L” 6 7 8 9 11 12 14 16 18 19 20 22 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24

Note: For sizes not listed, contact Naylor Pipe Company.
